C101 C102 gear pump

Good quality Hydraulic Gear Pump for sales
I'm Online Chat Now

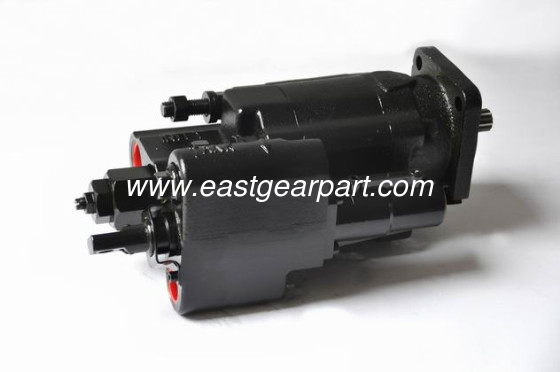

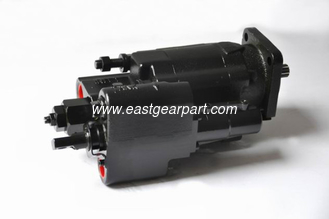

C101 C102 gear pump

China C101 C102 gear pump supplier
C101 C102 gear pump supplier C101 C102 gear pump supplier

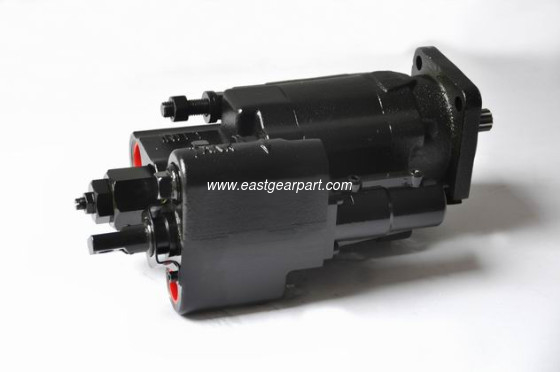

Large Image :  C101 C102 gear pump

Product Details:

Place of Origin: China
Brand Name: East
Certification: ISO9001:2008
Model Number: C101 C102

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 5~30days
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description

Description features:

1). We offer two different families of this popular pump

2). Both series available in either manual or air shift options

3). Pressure settings are available in either 2000 or 2500psi setting

4). Flows of 37 and 46 GPM at 1800 RPM

5). Speeds to 2400 RPM

6). Direct mount SAE "B" 4 bolt or twin shafted remote mount with bracket

7). All cast iron 3 piece construction fully rebuildable

8). Built-in direct acting & adjustable relief valve set at factory

9). Heavy duty needle roller bearings provides long lasting service even in the roughest of dump applications

10). High precision, super finished, hardened and high strength alloy steel gears and shafts

11). Pressure balanced thrust plates maintain high pump efficiency throughout all operating ranges

12). Integral valve capable of 2-line for intermittent duty or 3-line for continuous duty systems

13). 1 1/4" NPT inlet port, 1" NPT pressure port and 1" NPT return port for 3-line applications

14). PTO direct mount SAE B 4 bolt or optional mounting bracket

15). Extra long assembly studs for easy installation of pump support bracket on direct mount units

16). Neutral lock-out safety cap for use with pull-out cable preventing accidental lowering of the dump body

17). Pump and cylinder protected in the Raise & Neutral position of the valve spool

18). All pumps and relief valves are 100% factory tested

19). Air shaft cylinder available

20). East Gear C101 C102 dump pump can be full interchangeable with Parker/Commercial Intertech, Permco, Muncie, Chelsea, Metaris C101 C102 pump

21). Each pump is individually boxed in protective shipping materials



C101 gear pump performance data:

Model
No.

Gear
Width

GMP @
1800RPM

LMP @
1800RPM

Pressure
(psi)

Max Speed
(rpm)

Input Power
(kw)

Shift
Option

Rotation

C101D-20-RMS

2"

39

147

2500

2400

75

Manual

CW/CCW

C101D-25-RMS

2 1/2"

48

180.5

2500

2400

90

Manual

CW/CCW

C101D-20-RAS

2"

39

147

2500

2400

75

Airshift

CW/CCW

C101D-25-RAS

2 1/2"

48

180.5

2500

2400

90

Airshift

CW/CCW

East Gear

Parker/
Commercial

Permco
Model #

Metaris
Model #

Muncie
Part #

10 Digit #

EC101D-20-RMS

C101D-20

DM512-20-ZR-M-T-250

MH101C-20-RMS

E2XL23-1RPRB

314-9310-205

EC101D-25-RMS

C101D-25

DM640-25-ZR-M-T-250

MH101C-25-RMS

E2XL27-1RPRB

314-9310-206
314-9310-226

EC101D-20-RAS

C101D-20-AS

DM512-20-ZR-M-AS-250

MH101C-20-RAS

E2XA23-2BPRB



EC101D-25-RAS

C101D-25-AS

DM640-25-ZR-M-AS-250

MH101C-25-RAS

E2XA27-2BPRB





C102 gear pump performance data:

Model
No.

Gear
Width

GMP @
1800RPM

LMP @
1800RPM

Pressure
(psi)

Max Speed
(rpm)

Input Power
(kw)

Shift
Option

Rotation

C102D-20-LMS

2"

39

147

2500

2400

75

Manual

CCW

C102D-25-LMS

2 1/2"

48

180.5

2500

2400

90

Manual

CCW

C102D-20-RMS

2"

39

147

2500

2400

75

Manual

CW

C102D-25-RMS

2 1/2"

48

180.5

2500

2400

90

Manual

CW

DC102D-20-LAS

2"

39

147

2500

2400

75

Airshift

CCW

C102D-25-LAS

2 1/2"

48

180.5

2500

2400

90

Airshift

CCW

C102D-20-RAS

2"

39

147

2500

2400

75

Airshift

CW

C102D-25-RAS

2 1/2"

48

180.5

2500

2400

90

Airshift

CW

East Gear

Parker/
Commercial

Permco
Model #

Metaris
Model #

Muncie
Part #

10 Digit #

EC102D-20-LMS

C102D-20-1

DMD20-Z-L-MS-25

MH102C-20-LMS

E2XL23-2BPRL

314-9320-202

EC102D-25-LMS

C102D-25-1

DMD25-Z-L-MS-25

MH102C-25-LMS

E2XL27-2BPRL

314-9325-202
314-9325-229

EC102D-20-RMS

C102D-20

DMD20-Z-R-MS-25

MH102C-20-RMS

E2XL23-2BPRR



EC102D-25-RMS

C102D-25

DMD25-Z-R-MS-25

MH102C-25-RMS

E2XL27-2BPRR

314-9325-201
314-9325-234

EC102D-20-LAS

C102D-20-1-AS

DMD20-Z-L-AS-25

MH102C-20-LAS

E2XA23-2BPRL

314-9325-227

EC102D-25-LAS

C102D-25-1-AS

DMD25-Z-L-AS-25

MH102C-25-LAS

E2XA27-2BPRL



DC102D-20-RAS

C102D-20-AS

DMD20-Z-R-AS-25

MH102C-20-RAS

E2XA23-2BPRR



EC102D-25-RAS

C102D-25-AS

DMD25-Z-R-AS-25

MH102C-25-RAS

E2XA27-2BPRR
