Commercial Intertech P50 P51 Gear Pump

Good quality Hydraulic Gear Pump for sales
I'm Online Chat Now

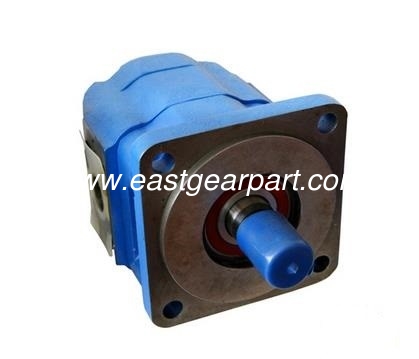

Commercial Intertech P50 P51 Gear Pump

China Commercial Intertech P50 P51 Gear Pump supplier

Large Image :  Commercial Intertech P50 P51 Gear Pump

Product Details:

Place of Origin: China
Brand Name: East
Certification: ISO9001:2008
Model Number: P50 P51 M50 M51

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export carton/plywood case
Delivery Time: 10~30days
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description

Description features:

1, Compact structure, small volume, low noise, high pressure, wide flow range

2, High strength Iron casting, external gear pump

3, Second-seal structure, to improve pump’s performance.

4, Thrust plate, with special structure and special surface treatment, make our pump better pressure-proof and anti-wear.

5, Special structure bearings, provide better capacity for heavy load and impaction.

6, The pump (motor) has the characteristics of serialization, standardization, and generalization.

7, Double and multiple assemblies are available. Pump and motor have a wide selection of mounting connection type, connection dimension is SAE standard.

8, East Gear P50 P51 gear pump and motor can be full interchangeable with Parker/Commercial Intertech, Permco, Muncie, Chelsea, Metaris pump and motor.



P50 P51 Hydraulic Gear Pump Performance Data

Flow

mL/rev

G.W
in

Rated pressure

MPa

Max pressure
MPa

Speed
RPM
Highest lowest

Input power KW

20.89

1/2"

20.7

24.2

2400  600

20.2

31.34

3/4"

20.7

24.2

2400  600

30.3

41.79

1"

20.7

24.2

2400  600

40

52.24

1 1/4"

20.7

24.2

2400  600

50

62.68

1 1/2"

20.7

24.2

2400  600

59.6

73.13

1 3/4"

20.7

24.2

2400  600

70

83.57

2"

17.2

20.7

2400  600

66

94.02

2 1/4"

17.2

20.7

2400  600

74

104.5

2 1/2"

17.2

20.7

2400  600

82



M50 M51 Hydraulic Motor Performance Data

Flow
mL/rev

input flow
2000RPM
LPM

G.W
in

Rated pressure
MPa

Max pressure
MPa

Speed
RPM
Highest lowest

Output power
KW

Input power
Nm

41.79

94.5

1"

20.7

24.2

2200 600

26.1

124.5

62.68

140

1 1/2"

20.7

24.2

2200 600

38.7

184.6

83.57

185

2"

17.2

20.7

2200 600

42.7

204

104.5

233

2 1/2"

17.2

20.7

2200 600

54

258
