Description features:
1, High strength, perfect efficiency, long wear life, suited for heavy load and wretched environment. It also has excellent performance in high temperature and low low viscosity situation.

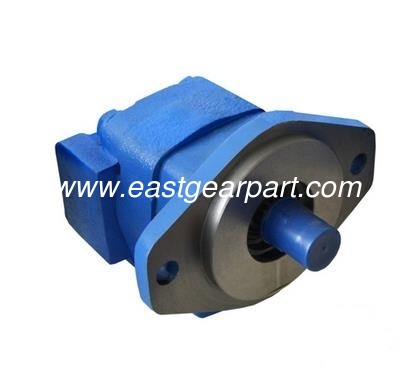

2, High strength Iron casting, external gear pump
3, Antifriction bushing bearing
4, Advanced pressure-balanced thrust plate and special seal structure.
5, The pump (motor) has the characteristics of serialization, standardization, and generalization. Double and multiple assemblies are available. Pump and motor have a wide selection of mounting connection type, connection dimension is SAE standard.
6, East Gear P315 M315 gear pump and motor can be full interchangeable with Parker/Commercial Intertech, Permco, Muncie, Chelsea, Metaris P315 pump and motor.
P315 Hydraulic Gear Pump Performance Data:
Flow | G.W | Rated Pressure | Max Pressure MPa | Speed | Input power |
7.6 | 3/8＂ | 24.1 | 28 | 3000 600 | 10 |
10.2 | 1/2＂ | 24.1 | 28 | 3000 600 | 13 |
12.7 | 5/8＂ | 24.1 | 28 | 3000 600 | 17 |
15.2 | 3/4＂ | 24.1 | 28 | 3000 600 | 20 |
17.8 | 7/8＂ | 24.1 | 28 | 3000 600 | 23 |
20.3 | 1＂ | 24.1 | 28 | 3000 600 | 26 |
22.9 | 1 1/8＂ | 24.1 | 28 | 3000 600 | 30 |
25.4 | 1 1/4＂ | 24.1 | 28 | 3000 600 | 33 |
27.9 | 1 3/8＂ | 24.1 | 28 | 3000 600 | 36 |
30.5 | 1 1/2＂ | 22.8 | 26.2 | 3000 600 | 37 |
33.0 | 1 5/8＂ | 21.4 | 24.8 | 3000 600 | 38 |
35.6 | 1 3/4＂ | 20.0 | 23 | 3000 600 | 38 |
38.1 | 1 7/8＂ | 18.6 | 21.4 | 3000 600 | 37 |
40.6 | 2＂ | 17.2 | 20 | 3000 600 | 38 |
M315 Hydraulic Motor Performance Data
Flow | Input flow | G.W | Rated pressure | Max pressure | speed | Output power | Output torque |
20.3 | 46 | 1＂ | 21.4 | 24.8 | 3000 600 | 13.2 | 63 |
25.4 | 56 | 1 1/4＂ | 21.4 | 24.8 | 3000 600 | 16 | 76.4 |
30.5 | 66 | 1 1/2＂ | 18 | 21 | 3000 600 | 25.8 | 123.2 |
35.6 | 78 | 1 3/4＂ | 18 | 21 | 3000 600 | 18.9 | 90.3 |
40.6 | 89 | 2＂ | 17.2 | 20 | 3000 600 | 20.7 | 98.9 |
