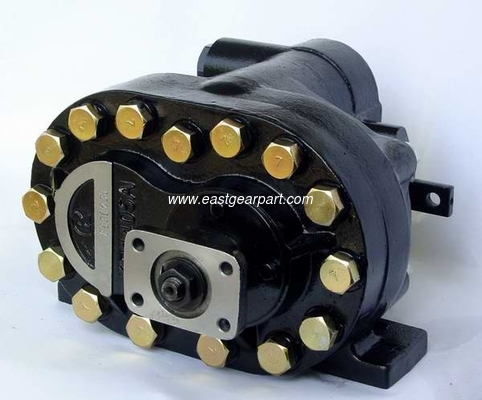

KPseries hydraulic gear pump is used for Japan dump truck, widely use for Thailand, Indonesia, Malaysia market.
(KPseries) Lifting hydraulic gear pump is a kind of widely use high press hydraulic element with the reasonable structure, reliable working performance, and easily maitainance etc. Our production is mainly adopted in the hydraulic of dump truck made in Japan.
As a hydraulic power, this lifting hydraulic gear pump is mainly adopted in the hydraulic system of dump truck(load from 4T to 10T). Being equipped with operating valve connecting with inside of pump body, so that the lifting and dropping of funnel can be controlled by operating rod.

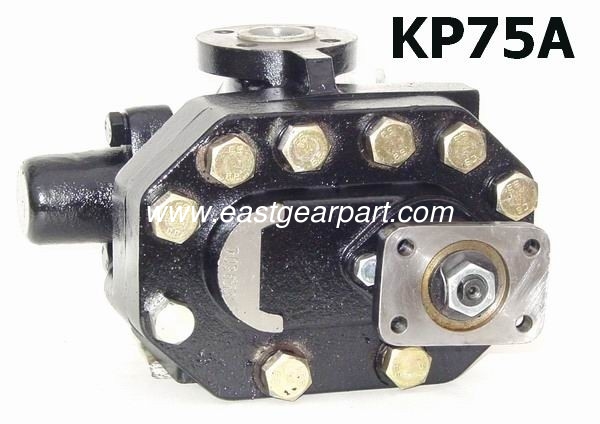

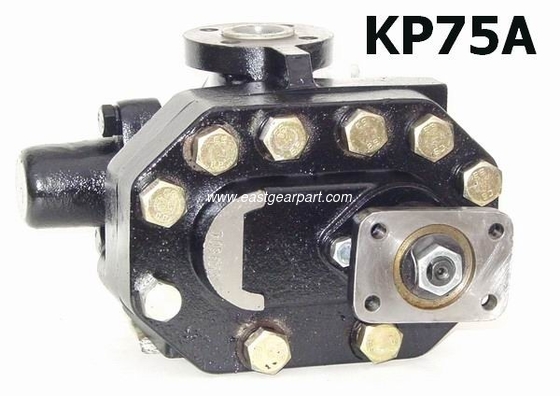

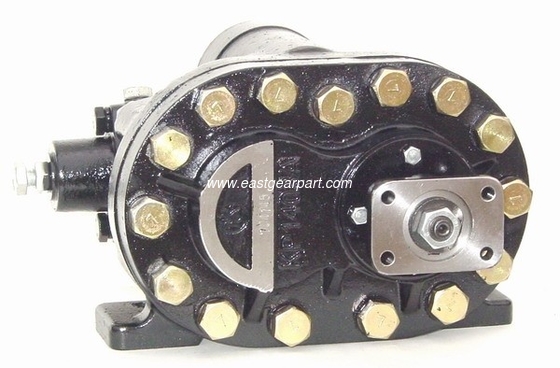

East Gear supply KP35B, GPG55, KP55A, KP75A, KP1403A, KP1403A-R, KP1405A, KP1405A-R, KP1505A, KPA1302 gear pump.
| KP-35B Tipper pump | |||
| Displacement(ml/r): | 35 | ||
| Pressure: | Max(kg/cm2): 175 | ||
| Rated(kg/cm2): 45 | |||
| Speed: | Max(r. p. m): 1800 | ||
| Min(r. p. m): 350 | |||
| Valve control wire actuating force: | 10 | ||
| Shaft DIA(mm): | 22 | ||
| Weight(kg): | 10 | ||
| Oil: | Mobil DTE 26 or equivalent | ||
| KP-45A Tipper Pump | |||
| Displacement(ml/r): | 45 | ||
| Pressure: | Max(kg/cm2): 210 | ||
| Rated(kg/cm2): 70 | |||
| Speed: | Max(r. p. m): 1800 | ||
| Min(r. p. m): 350 | |||
| Valve control wire actuating force: | 12 | ||
| Shaft DIA(mm): | 22 | ||
| Weight(kg): | 11 | ||
| Oil: | Mobil DTE 26 or equivalent | ||
| KP-55A Tipper Pump | |||
| Displacement(ml/r): | 55 | ||
| Pressure: | Max(kg/cm2): 210 | ||
| Rated(kg/cm2): 70 | |||
| Speed: | Max(r. p. m): 1800 | ||
| Min(r. p. m): 350 | |||
| Valve control wire actuating force: | 13 | ||
| Shaft DIA(mm): | 22 | ||
| Weight(kg): | 13 | ||
| Oil: |
Mobil DTE 26 or equivalent |
||
