Gear Shaping

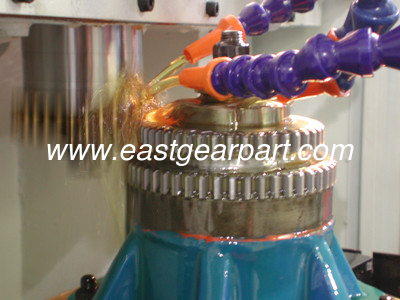

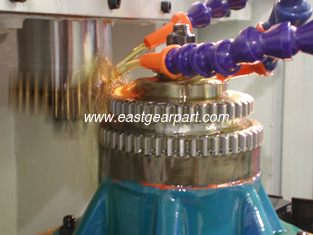

East Gear can provide shaping of external and internal gears, splines and other forms. We offer 1/8” to 15.75” capacity on full CNC 6 axis shaping equipment. Capacities range from 3 diametral pitch to 120 diametral pitch and A.G.M.A. Class 11. We also offer up to a 36” capacity on manual cutting equipment. With CNC and manual shaping machines, Precision Gear can offer competitive pricing and delivery from one piece to thousands. This service is offered on a contract or make-complete basis as customers request. We focus on close tolerance applications where our experienced staff and state of the art equipment can perform at the highest level.

Capacities

Size Range 1/8" to 36" Diametral Pitch 3 to 120 A.G.M.A. Class 11

Industries / Applications

Industries / Markets Served Aerospace Capital Equipment Defense General Aviation General Industrial Medical Mining Power Tools Applications Precision gear focuses on close tolerance shaping of internal and external gears and splines.

Certifications / Associations

Certifications ISO 9001:2008 Certified & AS 9100 Certified Industry Associations AGMA Member

Manufacturing Capabilities

Type of Gear Size Range Pitch Dia. Pitch A.G.M.A. Class Remarks Spur 3/32 to 36" 2 1/2 to 175 13 Max. 13" Face Width - 26" P.D. 9" Face Width - 36" P.D. Helical 1/8 to 26" 2 1/2 to 96 13 Max. Max. Face Width 13" Straight Bevels Up to 34" 1 1/4 to 96 9 Max. Max. Face Width 6" Dependent on Ratio Miters Up to 24" 1 1/4 to 96 9 Max. Max. Face Width 6" Cone Distance 17 1/2" Spiral Bevels Up to 8 1/2" 4 to 96 9 Max. Max. Face Width 1 1/4" Dependent on Ratio Splines 36" Dia. 3/6 to 128/256 N/A Involute and Straight Sided Worms 1/8 to 12" 4 to 96 10 Max. Single and Multiple Threads Worm Gears 1/4 to 26" 2 1/2 to 96 10 Max. Single and Multiple Threads
