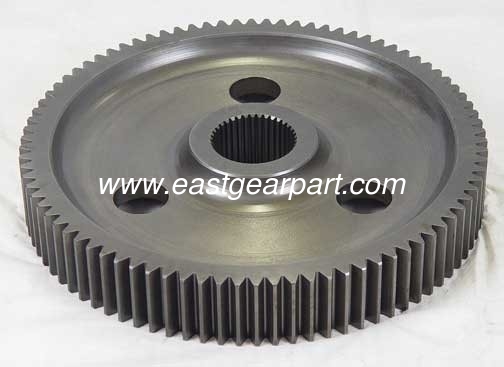

Using our milling, hobbing, shaping, we can cut your internal and external spur gears in various sizes.
For external gears, our diameter capacity is a minimum of 1/8" to a maximum of 48", with a diametral pitch from 96 to 2.0, a module measurement of 0.25 to 12, and a length up to 6", when shaping is used. For hobbed gears, we can produce lengths up to 56". Internal gears have a minimum diameter of 1" and a maximum of 36", with diametrical pitch from 96 to 3.0, module from 0.25 to 8, and a maximum shaped length of 6".
East Gear can work with brass, bronze, aluminum, and various steels, as well as plastics. Our customers come from a wide range of industries, and we are sure to be able to meet any custom spur gear requirement you may have. Contact East Gears with any questions or for more information.
Custom Spur Gear Manufacturing Specifications
|
Diameter (Internal Spur Gears) |
|
|
|
|
|
Diameter (External Spur Gears) |
|
|
|
|
|
Diametral Pitch(Internal Spur Gears) |
|
|
|
|
|
Diametral Pitch(External Spur Gears) |
|
|
|
|
|
Module(Internal Spur Gears) |
|
|
|
|
|
Module(External Spur Gears) |
|
|
|
|
|
Length Hob (External Spur Gears) |
|
|
|
|
|
Length Shaped (Internal Spur Gears) |
|
|
|
|
|
Length Shaped(External Spur Gears) |
|
|
|
|
|
General Capabilties |
|
As Needed
Contract
Just-In-Time |
Production
Small Parts |
|
|
|
|
Materials |
|
Alloy Steel
Aluminum
Brass
Bronze
Carbon Steel
Ductile Iron |
Gray Cast Iron
Nylon
Plastic
Phenolic
Polycarbonate
Stainless Steel |
|
|
|
|
Spur Gear Cutting & Finishing Methods |
|
Climb Hobbing
Conventional Hobbing
Grinding |
Milling
Shaping
Shaving |
|
|
|
|
Heat Treatment Methods |
|
Carburizing
Flame |
Induction
Nitriding |
|
|
|
|
Production Volume |
|
Specialty Production Shop
Prototype
Low Volume
Small Run |
High Volume
Large Run
Long Run
Large Scale Production Volume Run |
|
