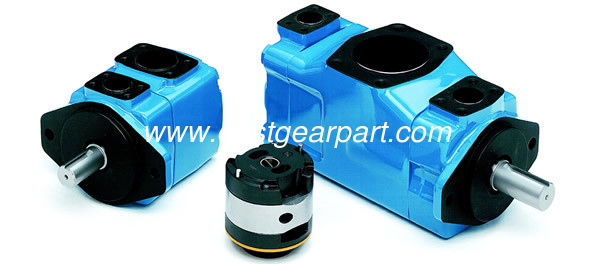

Eaton/Vickers V Series Low Noise Industrial Vane Pump
The V series pumps are designed for medium pressure industrial applications. The intra-vane cartridge design provides long operating life, outstanding volumetric efficiency (more than 90%) and excellent serviceability. The super-quiet (as low as 62 dB(A) 12-vane system is ideal for the indoor industrial environment.
Eaton/Vickers V Series Vane Pump Features :
Pressure balanced vane design
Modular construction
Wide range of displacements
Double, triple and through drive pump options
Eaton/Vickers V Series Hydraulic Vane Pump Benefits :
-Low noise and long life
-Ease of repair and serviceability
-Wide range of applications
-Compact for limited space installation
Hydraulic Vane Pump Model code:
Single pump--vane motor 20V, 25V,35V, 45V
Double pump--- vane motor 2520V, 3520V, 3525V, 4520V, 4525V, 4535V
Can be exchanged with the original ones completely:
|
25V
|
-21A
|
|
-1
|
A
|
-22
|
R
|
|
Series No.
|
Geometric Displacement code Of singlepump or shaft End pump of double pump
|
Geometric displacement code of cover end pump of double pump
|
Shaft type 1-Standard 86-Heavyduty 11/ 151/ 174-splined
|
outlet position
(viewed form cover end of pump) A-Opposite inlet port
B-90°CCW from inlet
C-Inline with inlet
D-90°CW from inlet
|
Designnumbers
|
Rotation (Viewedfrom shaft)
L-left hand forcounterclockwiseR-Right hand forclockwise, omit |
|
Series
|
DisplacementCode
|
Geometricdisplacement mL/r
|
V series
|
Weight(kg)
|
|
|
Max. speed(rpm)
|
Max pressure(MPa)
|
||||
|
20V
|
2
|
7
|
1800
|
14
|
12
|
|
3
|
10
|
21
|
|||
|
4
|
13
|
||||
|
5
|
18
|
||||
|
6
|
19
|
||||
|
7
|
23
|
||||
|
8
|
27
|
||||
|
9
|
30
|
||||
|
10
|
33
|
||||
|
11
|
36
|
||||
|
12
|
40
|
16
|
|||
|
14
|
45
|
14
|
|||
|
25V
|
10
|
33
|
1800
|
17.5
|
14.8
|
|
12
|
40
|
||||
|
14
|
45
|
||||
|
17
|
55
|
||||
|
19
|
60
|
||||
|
21
|
67
|
||||
|
35V
|
21
|
67
|
1800
|
17.5
|
22.7
|
|
25
|
81
|
||||
|
30
|
97
|
||||
|
35
|
112
|
||||
|
38
|
121
|
||||
|
45V
|
42
|
138
|
1800
|
17.5
|
34
|
|
45
|
147
|
||||
|
50
|
162
|
||||
|
57
|
180
|
||||
|
60
|
193
|
||||
|
66
|
212
|
||||
|
75
|
237
|
14
|
|||
