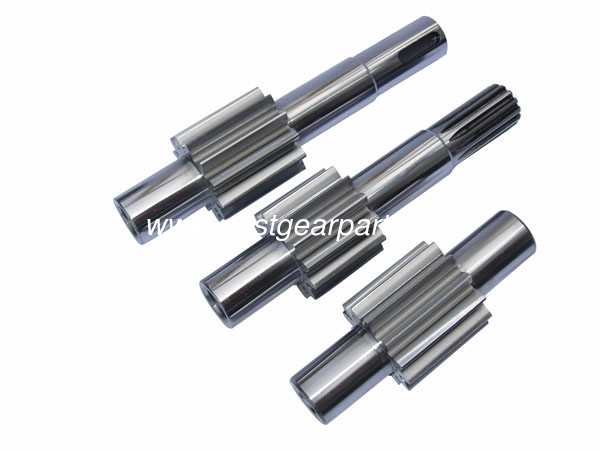

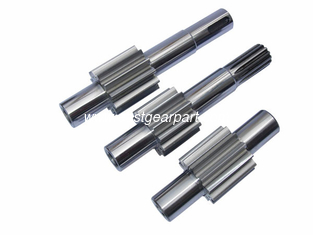

Parker Commercial P50 P51 pump gear set and shafts

: Large Image : Parker Commercial P50 P51 pump gear set and shafts

Product Details:

Place of Origin:	China
Brand Name:	East
Certification:	ISO9001:2008
Model Number:	Commercial P50 P51 gear set

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	FOR EXPORT
Delivery Time:	1~30days
Payment Terms:	TT/LC/DP
Supply Ability:	10000PCS/MONTH

Contact Now

Detailed Product Description

East Gear are professional gears and pump parts manufacturer in Ningbo, China with ISO9000 certificated, Here in our own factory, we can provide high-precision hydraulic pump gear&shaft, pump parts, PTO gears. All the gear&parts can be interchanged with that of OEM parts of the hydraulic pump such as Permco, Parker Commercial and Metaris gear pump etc.

We have complete gear machine including gear hobbing/gear shaving/gear shaping/gear&spline grinding/worm wheel gear grinding/CNC lathe machine etc., heat treatment and complete gear inspection equipment. All of our parts are strictly made according to the standard of ISO9001. And about 85% of our parts are exported to U. S. A, Canada and Europe market for hydraulic gear pump, PTO(power take off) and construction machinery.

Item No.	East Code	Parker Number	Name & Description	Gear Width
1	313-2805-000	313-2805-000	P30 / P31 Pump and Motor Drive Gear Set	1/2"
2	313-2807-000	313-2807-000	P30 / P31 Pump and Motor Drive Gear Set	3/4"
3	313-2810-000	313-2810-000	P30 / P31 Pump and Motor Drive Gear Set	1"
4	313-2812-000	313-2812-000	P30 / P31 Pump and Motor Drive Gear Set	1 1/4"
5	313-2815-000	313-2815-000	P30 / P31 Pump and Motor Drive Gear Set	1 1/2"
6	313-2817-000	313-2817-000	P30 / P31 Pump and Motor Drive Gear Set	1 3/4"
7	313-2820-000	313-2820-000	P30 / P31 Pump and Motor Drive Gear Set	2"
8	313-2822-000	313-2822-000	P30 / P31 Pump and Motor Drive Gear Set	2 1/4"
9	313-2825-000	313-2825-000	P30 / P31 Pump and Motor Drive Gear Set	2 1/2"
10	313-2827-000	313-2827-000	P30 / P31 Pump and Motor Drive Gear Set	2 3/4"
11	313-2830-000	313-2830-000	P30 / P31 Pump and Motor Drive Gear Set	3"

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 1
1	313-2905-250	313-2905-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1/2"	7
2	313-2907-250	313-2907-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	3/4"	7
3	313-2910-250	313-2910-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1"	7
4	313-2912-250	313-2912-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 1/4"	7
5	313-2915-250	313-2915-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 1/2"	7
6	313-2917-250	313-2917-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 3/4"	7
7	313-2920-250	313-2920-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2"	7
8	313-2922-250	313-2922-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 1/4"	7
9	313-2925-250	313-2925-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 1/2"	7
10	313-2927-250	313-2927-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 3/4"	7
11	313-2930-250	313-2930-250	SAE C - 14 Tooth Spline, 1.228" Major Diameter	3"	7

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 1
1	313-2905-750	313-2905-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	1/2"	11
2	313-2907-750	313-2907-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	3/4"	11
3	313-2910-750	313-2910-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	1"	11
4	313-2912-750	313-2912-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	1 1/4"	11
5	313-2915-750	313-2915-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	1 1/2"	11
6	313-2917-750	313-2917-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	1 3/4"	11
7	313-2920-750	313-2920-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	2"	11
8	313-2922-750	313-2922-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	2 1/4"	11
9	313-2925-750	313-2925-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	2 1/2"	11
10	313-2927-750	313-2927-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	2 3/4"	11
11	313-2930-750	313-2930-750	SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key	3"	11

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 1
1	313-2905-230	313-2905-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1/2"	25
2	313-2907-230	313-2907-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	3/4"	25
3	313-2910-230	313-2910-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1"	25
4	313-2912-230	313-2912-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 1/4"	25
5	313-2915-230	313-2915-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 1/2"	25
6	313-2917-230	313-2917-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 3/4"	25
7	313-2920-230	313-2920-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2"	25
8	313-2922-230	313-2922-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 1/4"	25
9	313-2925-230	313-2925-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 1/2"	25
10	313-2927-230	313-2927-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 3/4"	25
11	313-2930-230	313-2930-230	SAE B - 13 Tooth Spline, 0.858" Major Diameter	3"	25

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 1
1	313-2905-740	313-2905-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	1/2"	43
2	313-2907-740	313-2907-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	3/4"	43
3	313-2910-740	313-2910-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	1"	43
4	313-2912-740	313-2912-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	1 1/4"	43
5	313-2915-740	313-2915-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	1 1/2"	43
6	313-2917-740	313-2917-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	1 3/4"	43
7	313-2920-740	313-2920-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	2"	43
8	313-2922-740	313-2922-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	2 1/4"	43
9	313-2925-740	313-2925-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	2 1/2"	43
10	313-2927-740	313-2927-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	2 3/4"	43
11	313-2930-740	313-2930-740	Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4"	3"	43

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 2
1	313-2905-450	313-2905-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1/2"	53
2	313-2907-450	313-2907-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	3/4"	53
3	313-2910-450	313-2910-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1"	53
4	313-2912-450	313-2912-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 1/4"	53
5	313-2915-450	313-2915-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 1/2"	53
6	313-2917-450	313-2917-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	1 3/4"	53
7	313-2920-450	313-2920-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2"	53
8	313-2922-450	313-2922-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 1/4"	53
9	313-2925-450	313-2925-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 1/2"	53
10	313-2927-450	313-2927-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	2 3/4"	53
11	313-2930-450	313-2930-450	SAE C - 14 Tooth Spline, 1.228" Major Diameter	3"	53

Item No.	East Code	Parker Number	Name & Description	Gear Width	Type 2
1	313-2905-430	313-2905-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1/2"	65
2	313-2907-430	313-2907-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	3/4"	65
3	313-2910-430	313-2910-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1"	65
4	313-2912-430	313-2912-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 1/4"	65
5	313-2915-430	313-2915-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 1/2"	65
6	313-2917-430	313-2917-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	1 3/4"	65
7	313-2920-430	313-2920-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2"	65
8	313-2922-430	313-2922-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 1/4"	65
9	313-2925-430	313-2925-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 1/2"	65
10	313-2927-430	313-2927-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	2 3/4"	65
11	313-2930-430	313-2930-430	SAE B - 13 Tooth Spline, 0.858" Major Diameter	3"	65
