Commercial P315 Gear Pump Castings

China Commercial P315 Gear Pump Castings supplier

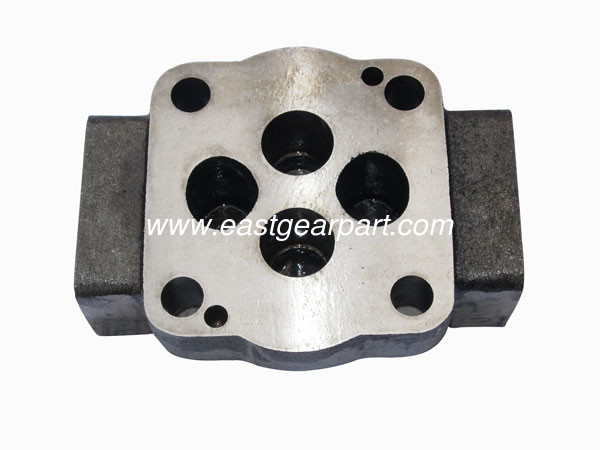

Large Image :  Commercial P315 Gear Pump Castings

Product Details:

Place of Origin: China
Brand Name: East
Certification: ISO9001:2008
Model Number: P315 M315

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Standard export carton/plywood case
Delivery Time: 1~35days
Payment Terms: TT/LC/DP
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description

East Gear make all the Parker/Commercial Intertech series gear pump casting parts including Port End Cover, Shaft End Cover, Housing and Bearing Carriage which can be full interchangeable with OEM parts.



P315 Gear Pump Castings:

         315-BC-1 --- 326-7100-100, 315, BEARING CARRIER 1 IN 1 OUT, NO BUSHING, DOWELED

         315-BC-2 --- 326-7300-100, 315, BEARING CARRIER 1 IN 2 OUT, NO BUSHING, DOWELED

         315M-H-05 --- 326-8205-100, 315 MOTOR, 1/2" GEAR HOUSING, DOWELED

         315M-H-07 --- 326-8207-100, 315 MOTOR, 3/4" GEAR HOUSING, DOWELED

         315M-H-10 --- 326-8210-100,315 MOTOR, 1" GEAR HOUSING, DOWELED

         315M-H-12 --- 326-8212-100, 315 MOTOR, 1-1/4" GEAR HOUSING, DOWELED

         315M-H-15 --- 326-8215-100, 315 MOTOR, 1-1/2" GEAR HOUSING, DOWELED

         315M-H-17 --- 326-8217-100, 315 motor, 1-3/4" GEAR HOUSING, DOWELED

         315M-H-20 --- 326-8220-100, 315 MOTOR, 2" GEAR HOUSING, DOWELED

         315M-PEC-S --- 326-3020-100, 315 MOOR, PORT END COVER SIDE PORTING, NO BUSHING, DOWELED

         315M-SEC-2A --- 326-5029-404, 315 MOTOR, 2 BOLT "A" SHAFT END COVER, w/ case drain, NO BUSHING

         315M-SEC-2B --- 326-5029-403, 315 MOTOR, 2 BOLT "B" SHAFT END COVER, w/ case drain, NO BUSHING

         315P-H-05 --- 326-8105-100, 315 PUMP, 1/2" GEAR HOUSING, DOWELED

         315P-H-07 --- 326-8107-100, 315 PUMP, 3/4" GEAR HOUSING, DOWELED

         315P-H-10 --- 326-8110-100, 315 PUMP, 1" GEAR HOUSING, DOWELED

         315P-H-12 --- 326-8112-100, 315 PUMP, 1-1/4" GEAR HOUSING, DOWELED

         315P-H-15 --- 326-8115-100, 315 PUMP, 1-1/2" GEAR HOUSING, DOWELED

         315P-H-17 --- 326-8117-100, 315 PUMP, 1-3/4" GEAR HOUSING, DOWELED

         315P-H-20 --- 326-8120-100, 315 PUMP, 2" GEAR HOUSING, DOWELED

         315P-PEC-S --- 326-3030-100, 315 PUMP, PORT END COVER SIDE PORTING, NO BUSHING,DOWELED

         315P-SEC-2A --- 326-5029-204, 315 PUMP, 2 BOLT "A" SHAFT END COVER, NO BUSHING, DOWELED

         315P-SEC-2B --- 326-5029-203, 315 PUMP, 2 BOLT "B" SHAFT END COVER, NO BUSHING, DOWELED
